0.69kW Motor Backward Centrifugal Fan 2775 Rpm With Long Inlet Ring
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RHA280D2.087_-2D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Category: | Backward Cntrifugal Fan | Blade Material: | AL-alloy |
|---|---|---|---|
| Blade Diameters: | 280mm | Protection Cl: | IP54 |
| Insulation Class: | F | Fan Weight: | 8.5kg |
| Voltage: | 3~400V+/-10%,50Hz | Rated Current: | 1.84A |
| Motor Rated Input Power: | 0.69kW | Rated Speed: | 2775rpm |
| Max Ambient Temperature: | 65℃ | ||
| High Light: | 0.69kW motor Backward Centrifugal Fan,Long Inlet Ring Backward Centrifugal Fan,2775 rpm centrifugal exhaust fan |
||
Product Description
0.69kW motor rated input power,long inlet ring backward centrifugal fan

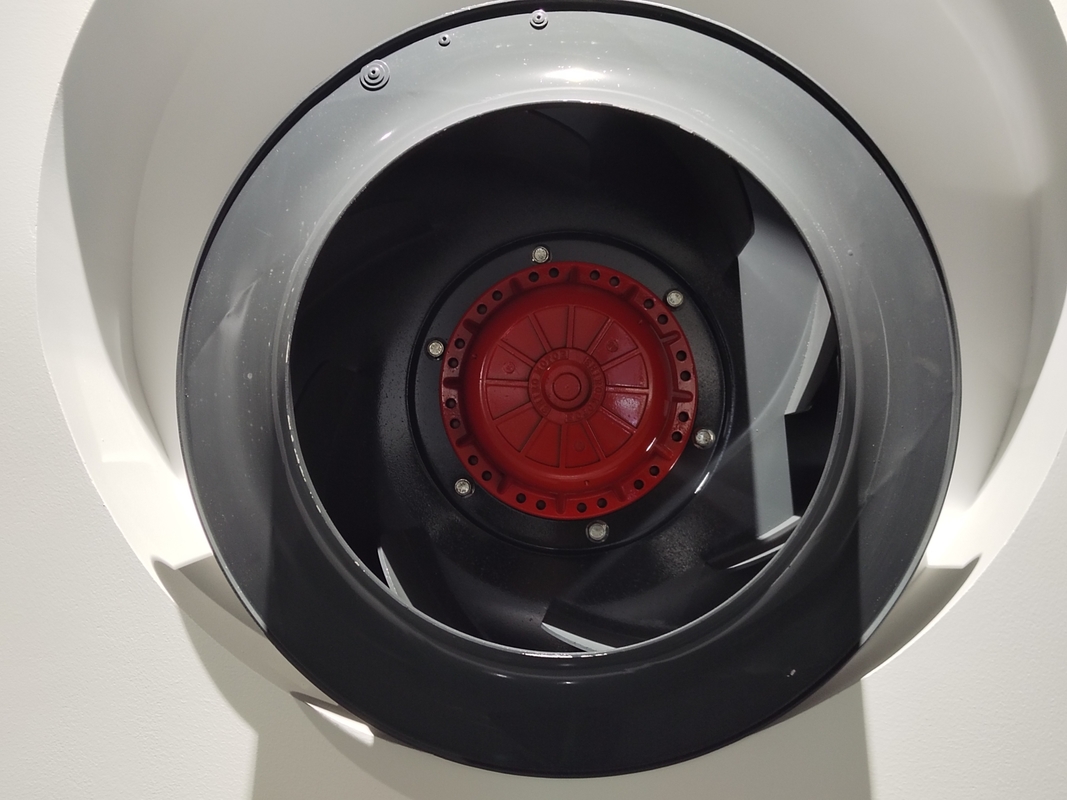

The backward centrifugal fan with long inlet ring has 280mm aluminum impeller.
The impeller's material makes the fan light and corrosion-resistant, which allows it to spin faster and last longer.
the control requirements of the performance indicators in the factory control standards are higher than the fan industry standards,
which can ensure the long-term stable operation of the fan.
The fan has excellent high temperature resistance properties and can operate normally in a high temperature environment of 65
degrees Celsius.
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
