2940 rpm 220mm Backward Centrifugal Fan Forward Galvanized Steel Impeller
Product Details:
Place of Origin: | Shanghai China |
Brand Name: | Schniro Fan |
Certification: | CCC ,CE, RoHS, UL |
Model Number: | RHA 220E2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5pcs |
---|---|
Packaging Details: | Carton,Plywood wooden cases |
Delivery Time: | 30 work days |
Payment Terms: | T/T |
Detail Information |
|||
Blade Material: | AL-alloy | Blade Diameters: | 220 Mm |
---|---|---|---|
Max Air Flow: | 860 M3/h | Max Static Pressure: | 550 Pa |
Power: | 83/116 W | Voltage Range: | 1~230V±10% |
Rotate Speed: | 2670/2940 Rpm | Ambient Temperature: | 70°C/55°C |
Frequency: | 50Hz | Protection Class: | IP54 |
High Light: | 220mm Backward Centrifugal Fan,2670 rpm backward curved centrifugal fan,116 w 2940 rpm Backward Centrifugal Fan |
Product Description

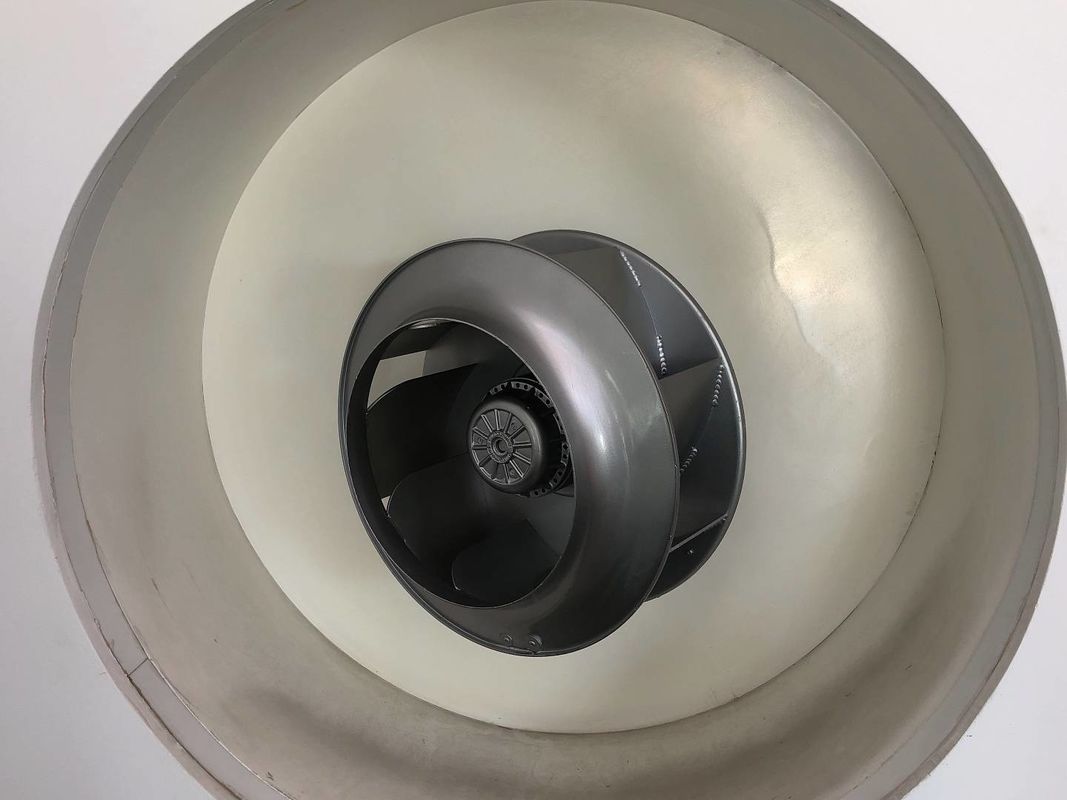

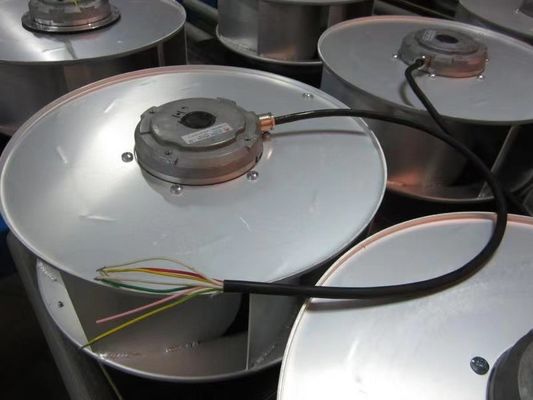

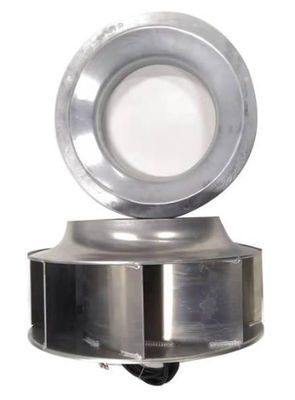

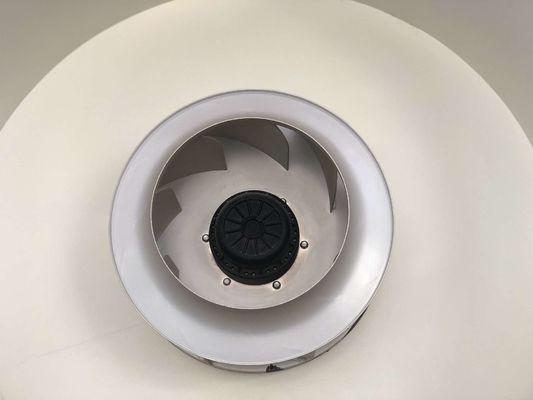

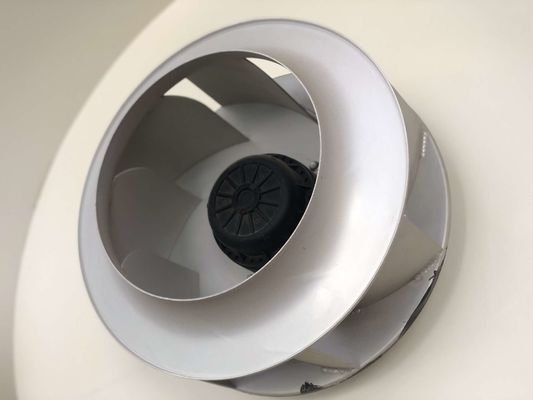

Centrifugal fan with diameter 220 forward galvanized steel impeller
Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor.
Impeller diameters is 220 mm. Motor can be applied different frequency and voltage.
Total solution for customer,ready-to-install series, this design reduce the risk caused by customer in process of assembling.
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
