Single Phase 4 Pole 450 mm Backward Centrifugal Fan 1215 rpm For Wind Powergeneration
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RHA 450E4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Blade Material: | AL-alloy | Blade Diameters: | 450 Mm |
|---|---|---|---|
| Max Air Flow: | 6400 M3/h | Max Static Pressure: | 460 Pa |
| Power: | 0.74 Kw | Voltage Range: | 1~230V ±10% |
| Rotate Speed: | 1215 Rpm | Ambient Temperature: | 50°C |
| Frequency: | 50Hz | Protection Class: | IP54 |
| High Light: | Backward Centrifugal Fan 1215 rpm,4 Pole centrifugal cooling fan,450 mm Backward Centrifugal Fan |
||
Product Description

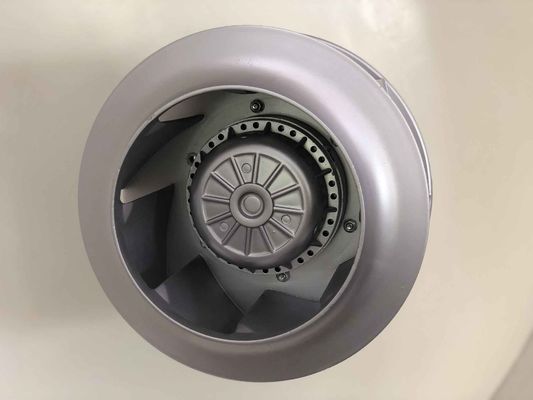

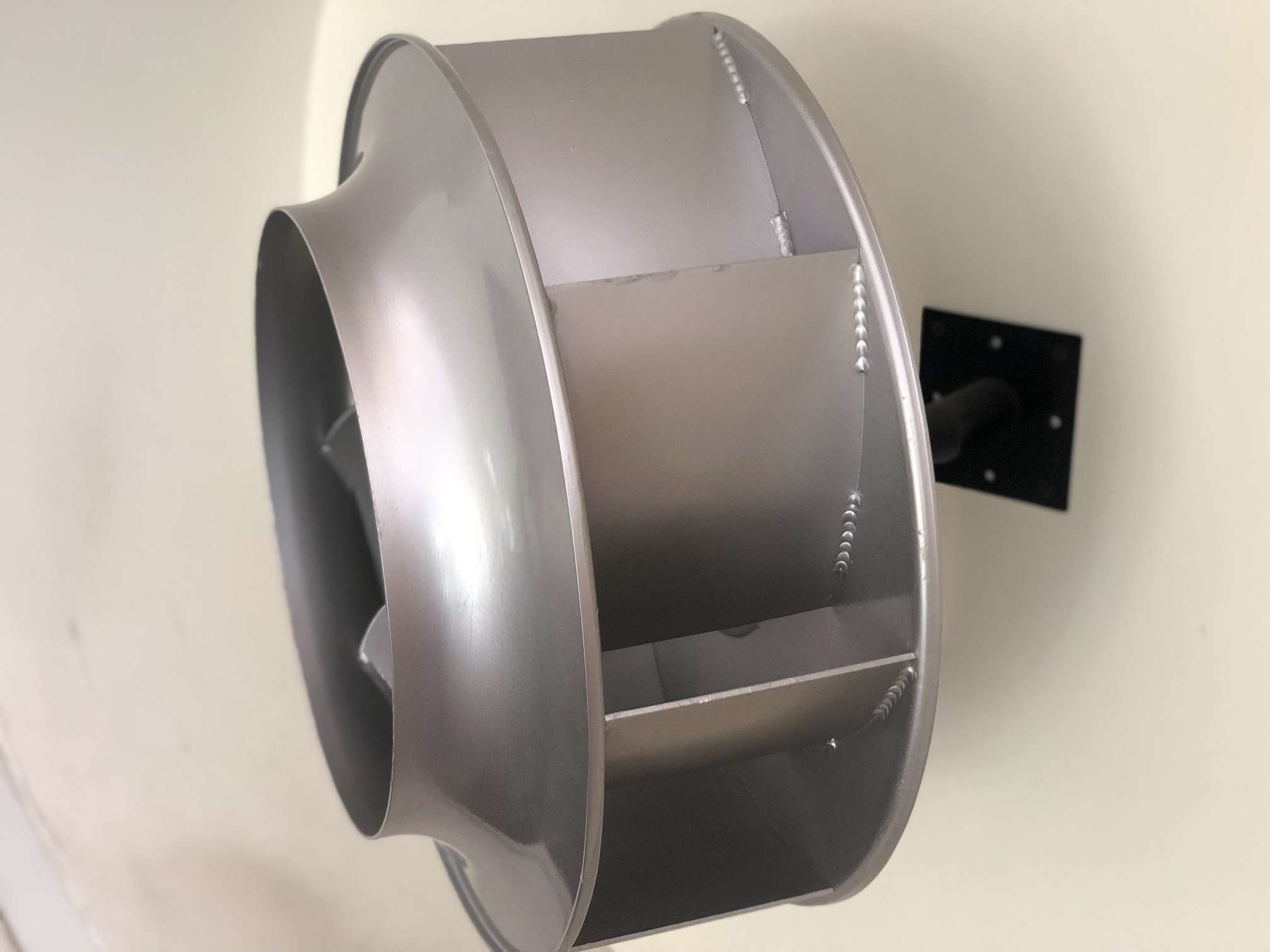

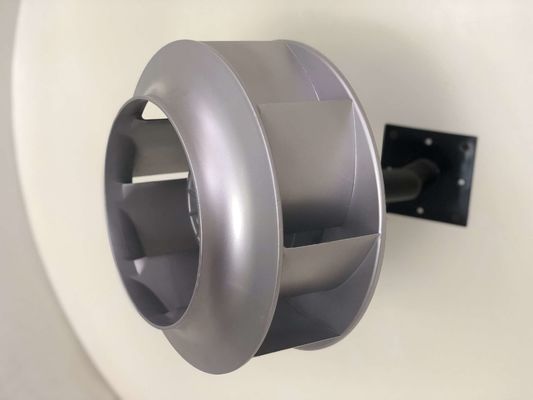

Single phase 4 pole centrifugal cooling fan, used in wind power generation
Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor.
Impeller diameters is 450 mm. Motor can be applied different frequency and voltage.
Total solution for customer,ready-to-install series, this design reduce the risk caused by customer in process of assembling.
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
