9500m3/h Industrial External Rotor Axial Flow Fan 500mm AL Alloy Sickle Blade
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | AL_500D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Category: | Industrial Axial Flow Fan | Blade Material: | IP54,AL-alloy |
|---|---|---|---|
| Blade Diameters: | 500mm | Max Air Flow: | 9500 M3/h |
| Max Static Pressure: | 170Pa | Power: | 0.89KW |
| Voltage Range: | 30~400V +/-10%,50Hz | Rotate Speed: | 1365rpm |
| Ambient Temperature: | 55°C | Application: | Exhaust Ventilation,HVAC |
| High Light: | Sickle Blade Axial Flow Blower,Industrial External Axial Flow Exhaust Fan,170Pa External Rotor Axial Fan |
||
Product Description

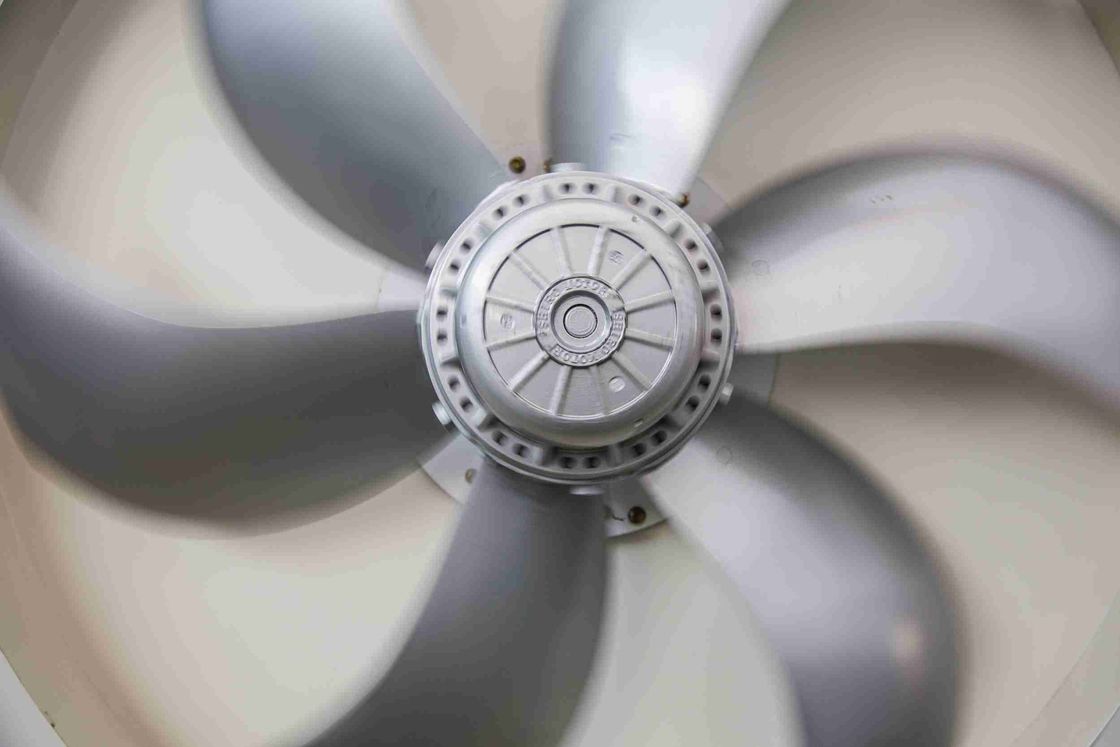

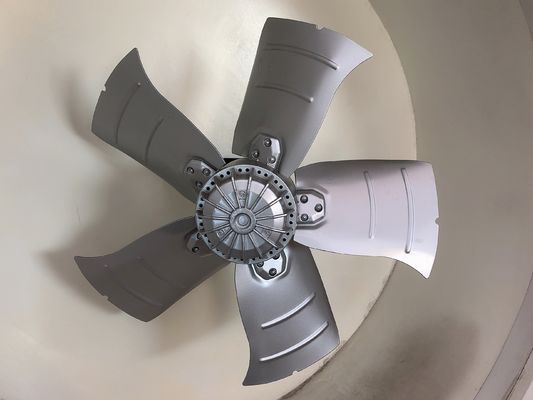

AL-alloy Sickle blade external rotor axial flow fan with 500mm Diameter blade
The impeller of SHIRO low pressure external rotor axial fan be made of AL-alloy,they uses sickle blade.
Through the voltage controllable external rotor motor,the fan was 100% speed controllable.
Available in both air flow directions, different blade angles, optional quantity of leaf number.Wide range of accessories, including guard grilles, basket guard grilles and wall rings.
The external rotor axial flow fan adopts high quality aluminum alloy integrated blade and high efficiency external rotor motor. Characterized by large air volume, low noise, low energy consumption, stability, high reliability, widely used. Available with mesh cover, panel mount or cylinder
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
