Large Air Flow External Centrifugal Fan 180mm Backward Curved Blade
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RHA 180D2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Category: | Air Flow External Rotor Centrifugal Fan | Blade Material: | AL-alloy |
|---|---|---|---|
| Blade Diameters: | 220mm | Max Air Flow: | 610m3/h |
| Max Static Pressure: | 400Pa | Power: | 52/65 |
| Voltage Range: | 3~400V +/-10%,50Hz | Rotate Speed: | 2500rpm ~2750rpm |
| Ambient Temperature: | 70°C | Protection Class: | IP54 |
| High Light: | 180mm External Rotor Centrifugal Fan,Backward Curved Blade External Centrifugal Fan,Large Air Flow Centrifugal Blower Fan |
||
Product Description

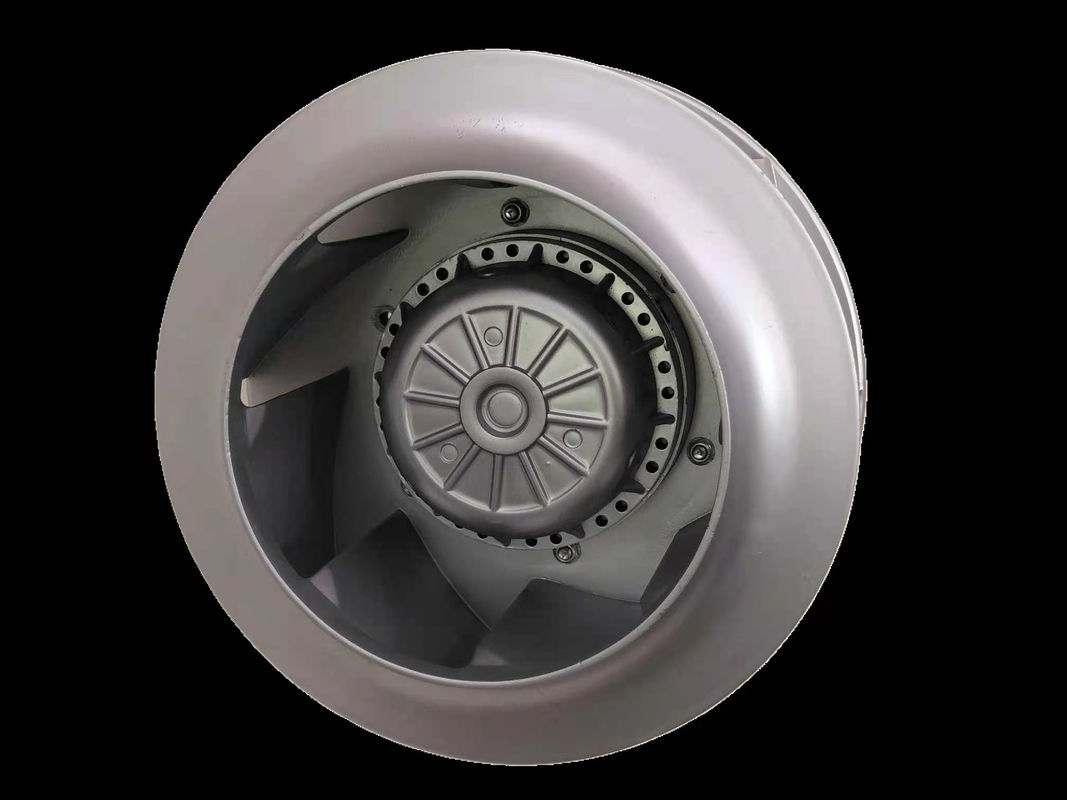

A large air flow external rotor centrifugal fan be in with the backward curved blade with 180mm diameter
The fan be made of AL-alloy,Impeller diameters is 180 mm.
The whole fan adopts pressure integration design.The compact design, reduced cost, efficiency in cooling panel and reduced power consumption gave our blowers an edge over others.
It has excellent wind making ability,it commonly used for purification, refrigeration and precision air conditioning.
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
