• Voltage Ventilator Forward Centrifugal Fan 280mm Industrial Centrifugal Blower
Voltage Ventilator Forward Centrifugal Fan 280mm Industrial Centrifugal Blower

Voltage Ventilator Forward Centrifugal Fan 280mm Industrial Centrifugal Blower

Product Details:

Place of Origin: Shanghai China
Brand Name: Schniro Fan
Certification: CCC ,CE, RoHS, UL
Model Number: RSFA280D4

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Carton,Plywood wooden cases
Delivery Time: 30 work days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Blade Material: Galvanized Steel Blade Diameters: 280 Mm
Max Air Flow: 3000 M3/h Max Static Pressure: 500 Pa
Power: 1.1kw Voltage Range: 3~400V +/-10%
Rotate Speed: 1180 Rpm Ambient Temperature: 40°C
Protection Class: IP54 Frequency: 50Hz
High Light:

Voltage Forward Centrifugal Fan

,

Controllable Ventilator Forward Centrifugal Fan

,

280mm industrial centrifugal blower

Product Description

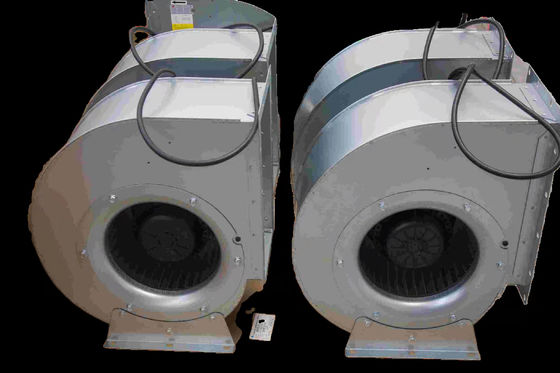

Voltage controllable ventilator with 280 diameter forward impeller





Centrifugal fan single inlet with diameter 280 forward curved galvanized steel impeller and scroll housing. The fan is driven by an singla phase external rotor motor,so it has compact construction and light in weight characteristics. The fan speed could be adjusted by voltage controller.It is designed with low noise, a long service life, and easy to install.

There are three mounting positions for the fan mounting feet to adapt different air outlet directions, with or without outlet flange. It also has customerized cable length.

This external rotor has aluminum casting rotor and stator with maintainence free ball bearing. It operates reliably and is both energy saving and efficient.The motor is equipted with thermal protector (TK), ensure the long service life.

This product is widely used in air purification, household appliances, HVAC,electronic equipment cooling,Industrial equipment ventilation etc.




Voltage Ventilator Forward Centrifugal Fan 280mm Industrial Centrifugal Blower 0Voltage Ventilator Forward Centrifugal Fan 280mm Industrial Centrifugal Blower 1



Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.

Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.

Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.

After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
