Three Phase 4 Pole 1160 rpm Double Inlet Centrifugal Fan With 225mm Galvanized Blade
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | RDF225D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Blade Material: | Galvanized Plate | Blade Diameters: | 225 Mm |
|---|---|---|---|
| Max Air Flow: | 3200 M3/h | Max Static Pressure: | 350 Pa |
| Power: | 0.83 Kw | Voltage Range: | 3~400V +/-10% |
| Rotate Speed: | 1160 Rpm | Ambient Temperature: | 40°C |
| Frequency: | 50Hz | Protection Class: | IP54 |
| High Light: | Double Inlet Centrifugal Fan 225m,1160 rpm 4 Pole inline centrifugal fan,1160 rpm Double Inlet Centrifugal Fan |
||
Product Description

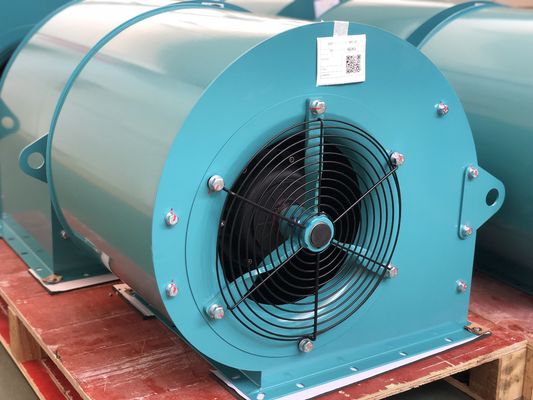

Three phase 4 pole double inlet centrifugal fan with 225mm Diameter galvanized blade
Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. This product series are high efficiency, a low noise level with a high increase in static pressure.
Impeller diameter range:200-280 mm(7-12 inch). Motor can be applied in different frequency and voltage.
Service is the extension of quality.With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
