• Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade
  • Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade
  • Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade
  • Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade
Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade

Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade

Product Details:

Place of Origin: Shanghai China
Brand Name: Schniro Fan
Certification: CCC ,CE, RoHS, UL
Model Number: RDFZ7/9D4

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Carton,Plywood wooden cases
Delivery Time: 30 work days
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Blade Material: Galvanized Plate Blade Diameters: 7inch
Max Air Flow: 2600 M3/h Max Static Pressure: 300 Pa
Power: 0.62kw Voltage Range: 3~400V +/-10%
Rotate Speed: 1290rpm Ambient Temperature: 70°C
Protection Class: IP54 Frequency: 50Hz
High Light:

0.62kw Double Inlet Centrifugal Fan Forward

,

1290rpm industrial centrifugal fans

,

Double Inlet Centrifugal Fan 7 Inch

Product Description

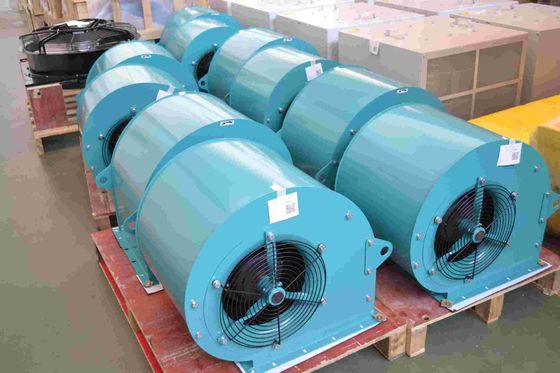

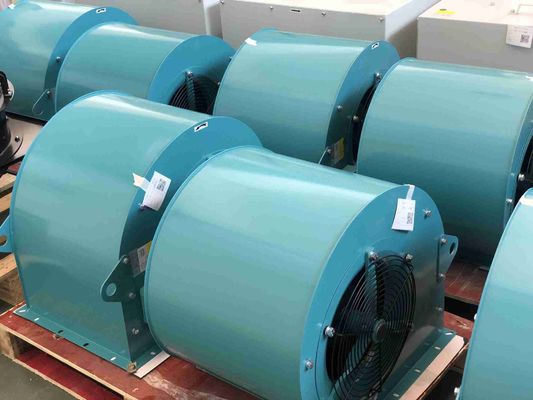

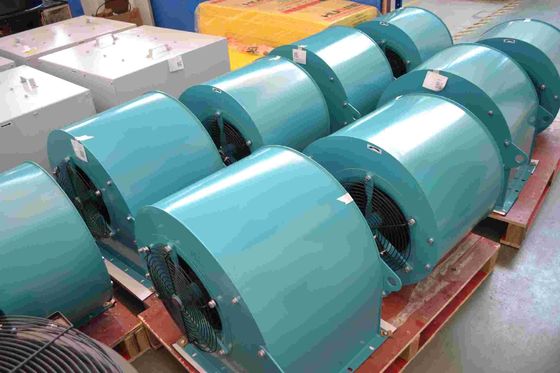

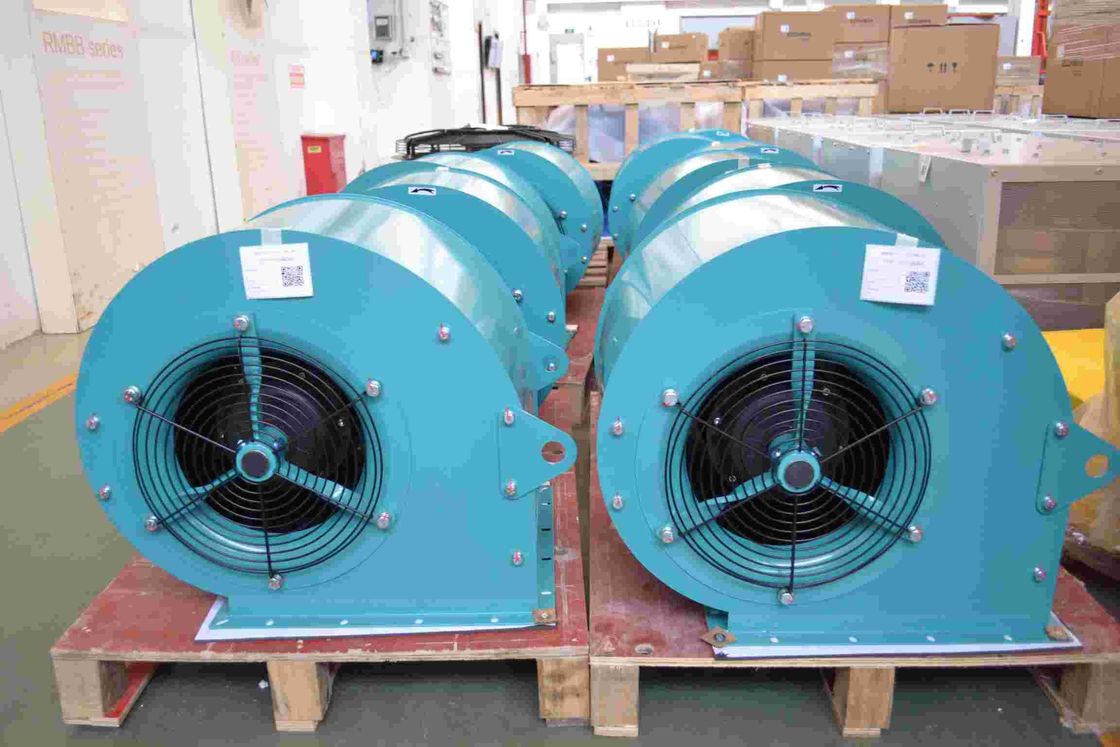

three phase 4 pole External rotor motor with forward 7 inch Diameter blade





Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. This product series are high efficiency, a low noise level with a high increase in static pressure.

Impeller diameter range:200-280 mm(7-12 inch). Motor can be applied in different frequency and voltage.



Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade 0Three Phase 4 Pole Double Inlet Centrifugal Fan Forward 7 Inch Blade 1

Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.

Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.

Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.

After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
