7000m3/h Three Phase Sickle Blade 1305rpm AC Axial Fan 450mm Blade
Product Details:
| Place of Origin: | China |
| Brand Name: | Schniro Fan |
| Certification: | CCC CE RoHS UL |
| Model Number: | AL_450D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Blade Material: | AL-alloy | Blade Diameters: | 450mm |
|---|---|---|---|
| Max Air Flow: | 7000m3/h | Max Static Pressure: | 140Pa |
| Power: | 0.63kw | Voltage Range: | 3~400V +/-10% |
| Rotate Speed: | 1305rpm | Ambient Temperature: | 60°C |
| Frequency: | 50Hz | Protection: | IP54 |
| High Light: | 7000m3 H AC Axial Fan,450mm blade high temperature axial fan,1305rpm AC Axial Fan |
||
Product Description

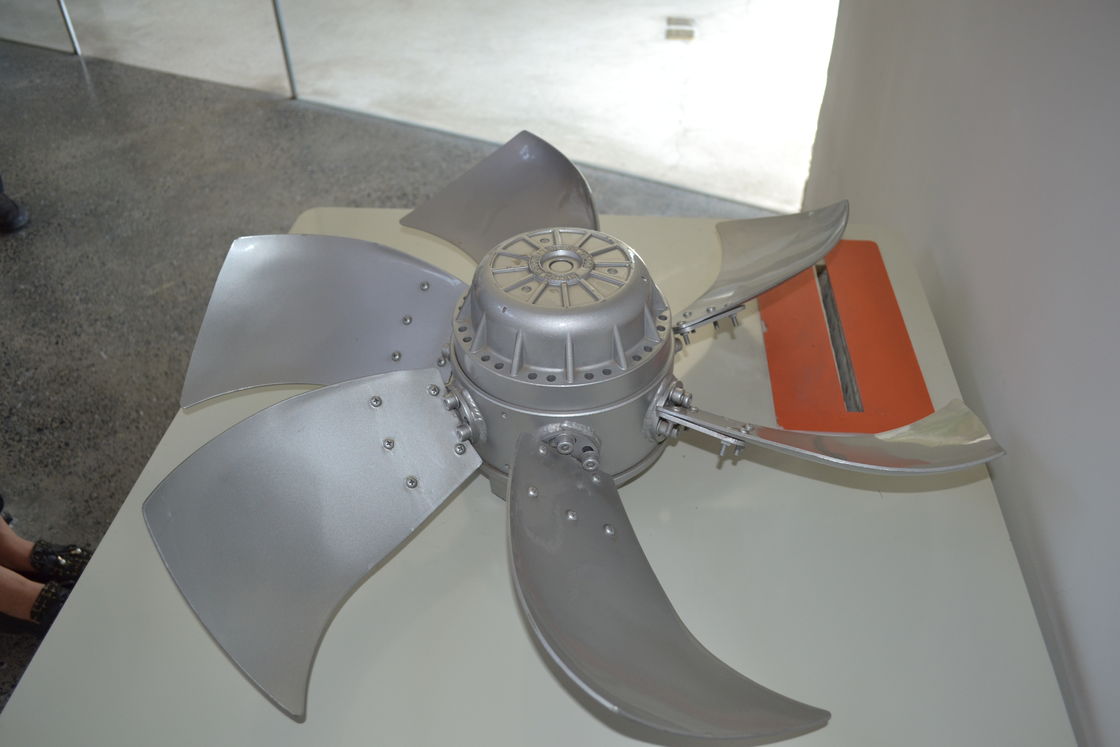

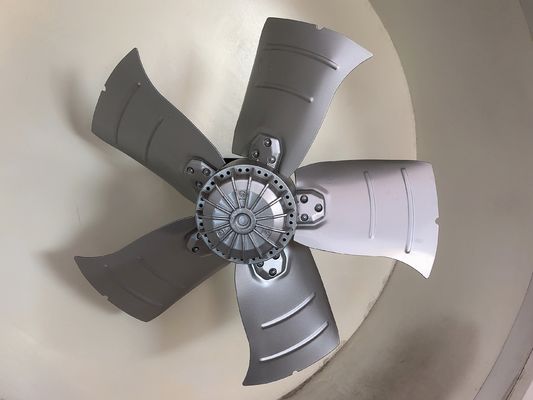

Three phase sickle blade axial fan with 450mm diameter blade
The external rotor axial flow fan adopts high quality aluminum alloy integrated blade and high efficiency external rotor motor. Characterized by large air volume, low noise, low energy consumption, stability, high reliability, widely used. Available with mesh cover, panel mount or cylinder
Service is the extension of quality,With outstanding quality and loyal service to pursue the most satisfaction of customers.
Pre-sale Services:
· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.
· User jointly develop applied to industry-specific special purpose machinery.
Sale of services:
· In accordance with the order or user requirements, coordination of stocking or production cycle.
· Provide a detailed production schedule or project plan to the user.
After-sale Service:
· To provide a lifetime goods services for all fans, included equipment maintenance, spare parts supply, provide manuals and video,etc.
· To provide remote service support by phone and network freely.
