Three Phase Sickle Blade External Rotor Axial Fan With 450mm Blade
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Schniro Fan |
| Certification: | CCC ,CE, RoHS, UL |
| Model Number: | AL_450D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Carton，Plywood wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Category: | Three Phase Sickle Blade Axial Flow Fan | Blade Material: | IP54,AL-alloy |
|---|---|---|---|
| Blade Diameters: | 450mm | Max Air Flow: | 7000 M3/h |
| Max Static Pressure: | 140Pa | Power: | 0.63KW |
| Voltage Range: | 10~400V +/-10%,50Hz | Rotate Speed: | 1305rpm |
| Ambient Temperature: | 60°C | Application: | Exhaust Ventilation,HVAC |
| High Light: | Sickle Blade External Rotor Axial Fan,450mm Blade External Rotor Fan,Three Phase Axial Flow Exhaust Fan |
||
Product Description

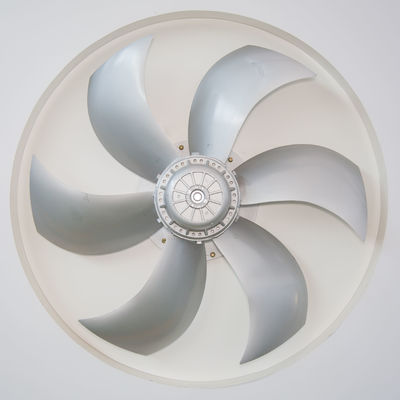

Three phase Sickle blade Axial fan with 450mm Diameter blade
The Impeller diameters of fan has 450 mm. Motor can be applied different frequency and voltage.
The speed of the fan can be controlled,It is more efficient, less noisy, better heat dissipation, suitable for a variety of environments.

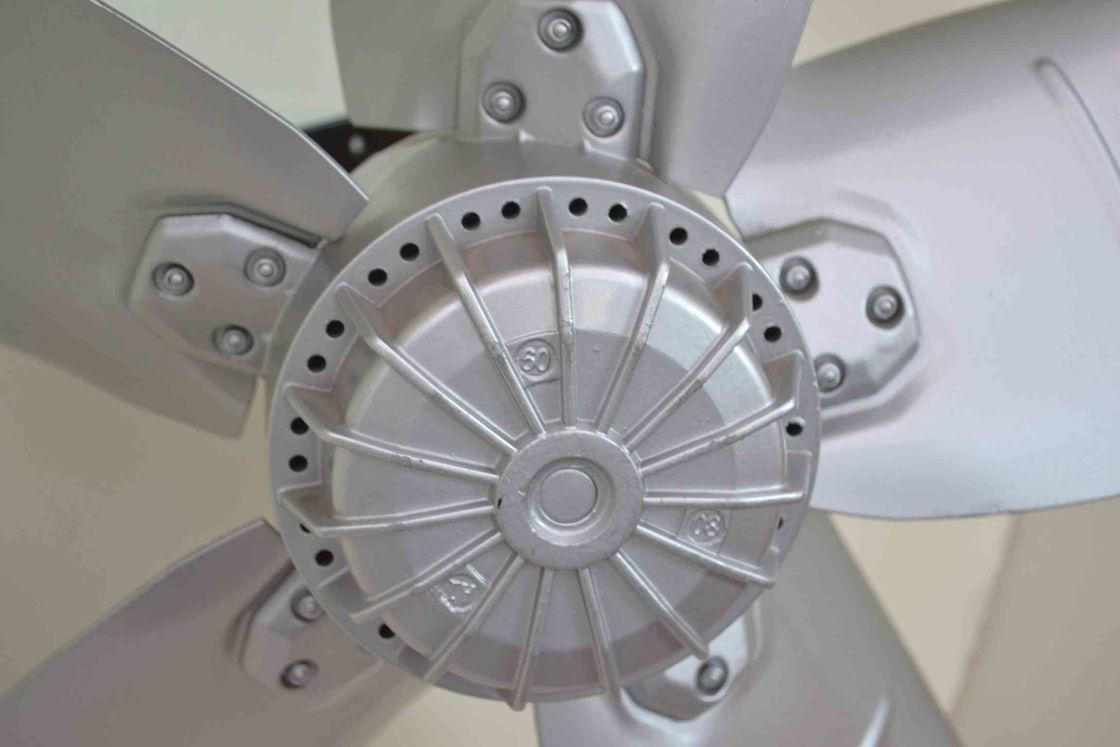

The external rotor axial flow fan adopts high quality aluminum alloy integrated blade and high efficiency external rotor motor. Characterized by large air volume, low noise, low energy consumption, stability, high reliability, widely used. Available with mesh cover, panel mount or cylinder
